IB-V "Variac" Variable Flow Valve
제품 개요

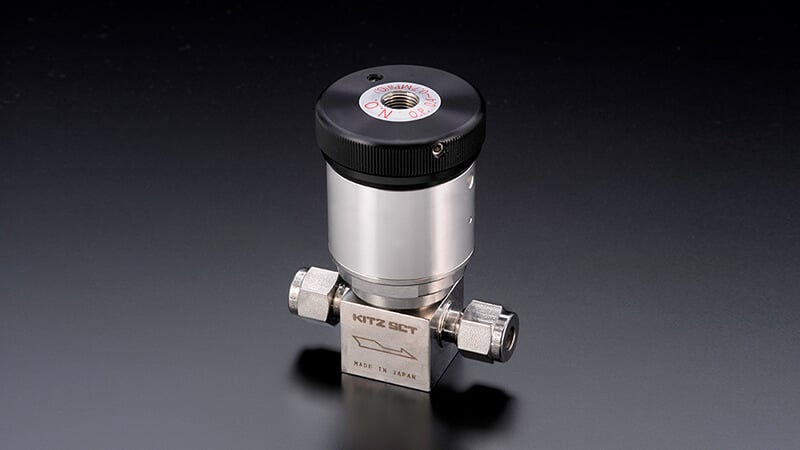

This is an automatic bellows valve which enables flow rate adjustment. This valve combines the properties of automatic and needle valves.
참고 형식 : IB4VCS-VCC-EP-316L
사양 개요
- Ports-Flow
-
2Ports-Straight
- Connection Size (in)
-
1/4"
- Connection Type
-
M-CVC
- Cv
-
0.03 ? 0.28
- Minimum Fluid Temperature (Celsius)
-
-10
- Maximum Fluid Temperature (Celsius)
-
100
- Minimum Ambience Temperature (Celsius)
-
-10
- Maximum Ambience Temperature (Celsius)
-
60
- Maximum Operating Pressure (MPa)
-
0.98
- Actuation
-
NC
- Bonnet Gasket
-
PCTFE
- Disk Material
-
PCTFE
- Surface Finish
-
EP
- Body Material
-
316L
※게재된 제품 이미지는 실제 제품과 일부 내용이 다를 수 있습니다.
주요 형식 도면 다운로드
※각종 도면(PDF, CAD, STEP)을 다운로드하기 위해서는 로그인 및 신규 회원 등록이 필요합니다.
| 주요 형식 | CAD | STEP | Connection Size (in) | Connection Type | Maximum Fluid Temperature (Celsius) | Actuation | Seat Material | Bonnet Gasket | Disk Material | Surface Finish | Handle | Purge Port | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IB4VCS-VCC-EP-316L | - | CAD | STEP | 1/4" | M-CVC | 100 | NC | - | PCTFE | PCTFE | EP | - | - |
| IB6VCS-VCC-EP-316L | - | - | - | 3/8" | M-CVC | 100 | NC | - | PCTFE | PCTFE | EP | - | - |
| IB8VCS-VCC-EP-316L | - | CAD | STEP | 1/2" | M-CVC | 100 | NC | - | PCTFE | PCTFE | EP | - | - |
| IB4VCS-VFCC-EP-316L | CAD | STEP | 1/4" | F-CVC | 100 | NC | - | PCTFE | PCTFE | EP | - | - | |
| IB4VCS-WCC-EP-316L | - | - | STEP | 1/4" | Tube butt welds | 100 | NC | - | PCTFE | PCTFE | EP | - | - |
| IB6VCS-VFCC-EP-316L | - | - | - | 3/8" | F-CVC | 100 | NC | - | PCTFE | PCTFE | EP | - | - |
| IB6VCS-WCC-EP-316L | - | - | - | 3/8" | Tube butt welds | 100 | NC | - | PCTFE | PCTFE | EP | - | - |
| IB8VCS-VFCC-EP-316L | - | CAD | STEP | 1/2" | F-CVC | 100 | NC | - | PCTFE | PCTFE | EP | - | - |
| IB8VCS-WCC-EP-316L | - | - | - | 1/2" | Tube butt welds | 100 | NC | - | PCTFE | PCTFE | EP | - | - |
